- Place of Origin: Zhejiang ,Taizhou
- Brand Name: KAIYU
- Model Number: DTH hammer
Product Information

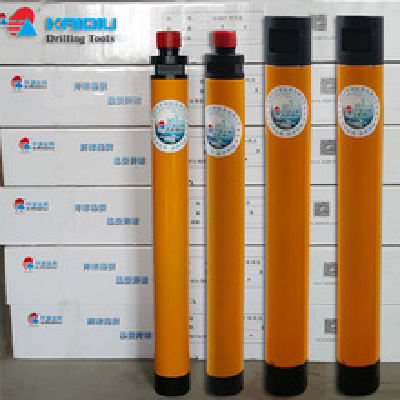

-Name: CIR130 low air pressure DTH hammer for mining water well drilling
-Item Number:KQ130B
-Brand Name: KAIYU
-Material: Carbide steel
-Machine type: Drilling Equipment
-Processing: Forging
Connect Thread: API 2 3/8” REG BOX
-Bit shank: CIR130
-Packaging: Wooden Case
-Delivery: 3-20days
-Certification: ISO9001
-Place of Origin: Taizhou, Zhejiang,China(Mainland)
-Use: Well drilling, blasting, ore mining
-Application: Marble quarrying and well drilling
- Place of Origin: Zhejiang ,Taizhou
- Brand Name: KAIYU
- Model Number: DTH hammer
LOW AIR PRESSURE HAMMERS | ||||||||||
| Hammer length w/o bit (mm) | Top Sub Thread | Outside Diameter (mm) | Weight | Bit diameter | Working pressure | Air consumption | Bit shank | ||
KQ-50 | 628 | F32*8PIN | 44 | 5 | 50 | 4-10 | 58-145 | 3-5 | 105-177 | CIR50 |
KQ-60 | 777 | F42*8PIN | 53 | 7.5 | 60 | 4-10 | 58-145 | 3-7 | 105-248 | CIR60 |
KQ-65 | 745 | F42*10PIN | 61 | 13 | 65 | 4-10 | 58-145 | 6-12 | 210-424 | CIR65 |
KQ-76A | 811 | F48*10PIN | 66 | 13.5 | 76 | 4-10 | 58-145 | 6-10 | 210-353 | CIR70 |
KQ-90A | 855 | F48*10PIN | 80 | 22 | 90-120 | 5-10 | 72-145 | 7-12 | 247-424 | CIR90 |
KQ-110B | 871 | API 2 3/8" REG BOX | 98 | 33 | 110-150 | 5-10 | 72-145 | 7-12 | 247-424 | CIR110 |
KQ-130B | 890 | API 2 3/8" REG BOX | 112 | 48.5 | 130-175 | 5-10 | 72-145 | 7-12 | 247-424 | CIR130 |
KQ-150A | 904 | F70*10PIN | 136 | 70 | 150-200 | 5-10 | 72-145 | 10-16 | 353-565 | CIR150 |
KQ-170A | 1030 | F100*28PIN | 156 | 96 | 170-250 | 5-10 | 72-145 | 12-18 | 424-635 | CIR170 |
KQ-200A | 1058 | F100*28PIN | 182 | 130 | 200-250 | 5-10 | 72-145 | 16-20 | 565-706 | CIR200 |
